Wood-Aluminium Window batimet TA35 SLRA

Wood-Aluminium Window
batimet TA35 SLRA

Request your personal architecture sample: Free Sample

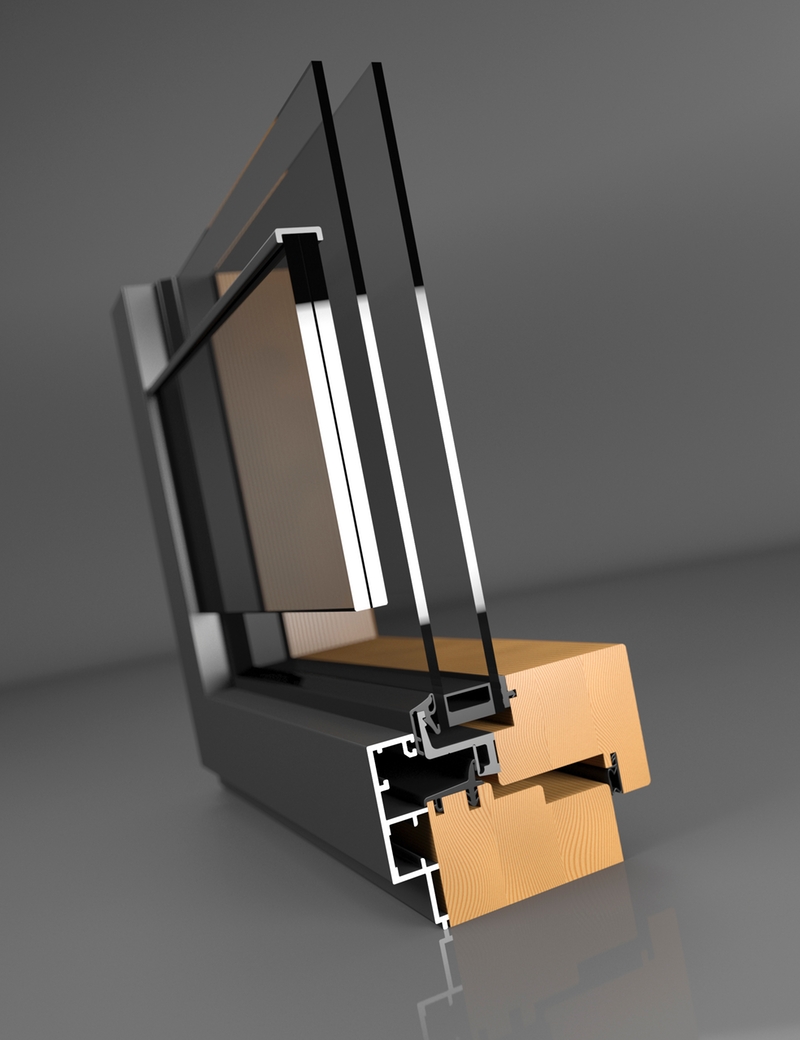

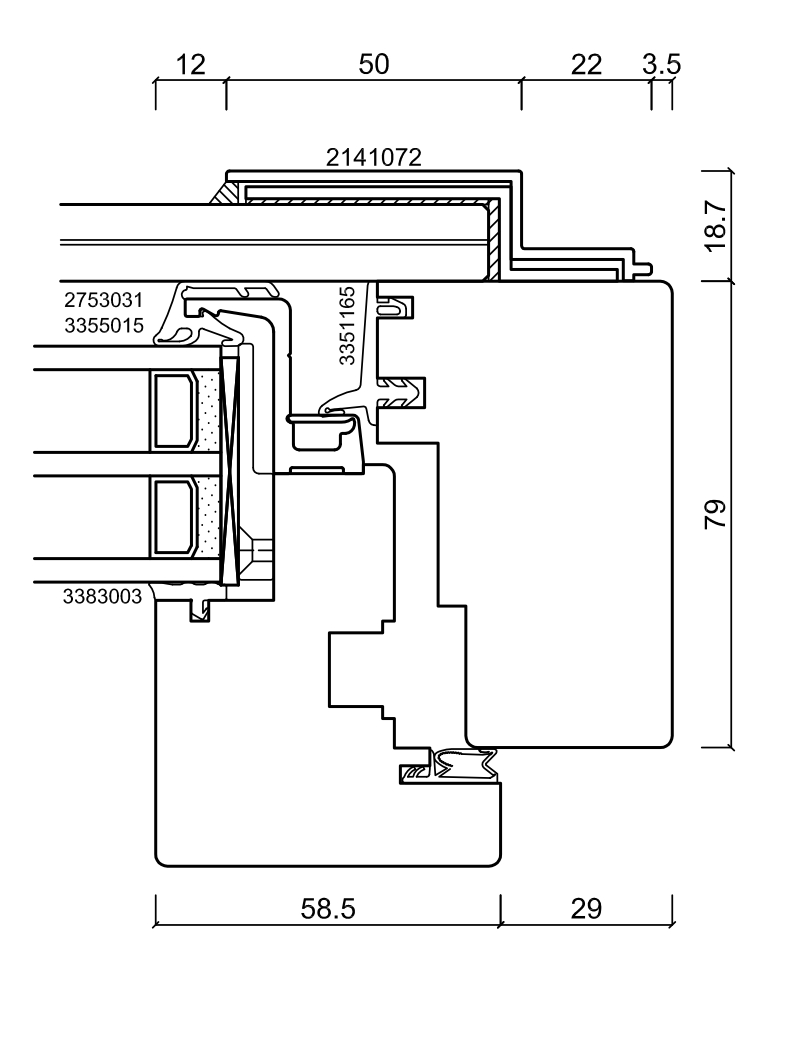

The frame profile conceals the sash profile insofar that there is an even elevation of the frame between fixed glazing and opening elements. The shape of the system construction is defined by its slim frame elevation of 50 mm. Between glass and sash profile there is a rebate of 8 mm depth. The construction is defined as an integral sash or as „Blockflügel“. The sash profile can be wider in the case of certain static requirements. Drainage of the rebate area is by means of concealed punch holes in the bottom profile crosspiece of the frame. Optionally, there can be visible drainage with a cover cap. Integrierte Glasabsturzsicherung unsichtbar befestigt im Aluminium-Rahmen. Die Integration der Glasscheibe in den Alurahmen erfolgt durch eine Systemfräsung. Die Glasabsturzsicherung wird durch ein spezielles, vollverdecktes Halteprofilsystem befestigt. Die Ausführung erfolgt nach den Regelungen der DIN 18008-4 für absturzsichere Verglasungen. Die Glasscheibe ist in allen Breiten immer als VSG Scheibe aus 2 x ESG mit je 6 mm aufgebaut. Den oberen Abschluss bildet ein filigranes System-Kantenschutzprofil aus Aluminium.

• Height of Sash to 3,000 mm
• Width of Sash to 1,600 mm
• Weight of Sash as Tilt/Turn to 200 kg
• Weight of Sash as Turn Only to 300 kg

The corner joints of the aluminium frame are welded without any visible joint line. Coating is carried out in conformity with the valid quality guidelines of the coating of building parts in aluminium of GSB-International GSB AL 631, or QUALICOAT regulations.
