Wood-Aluminium Window

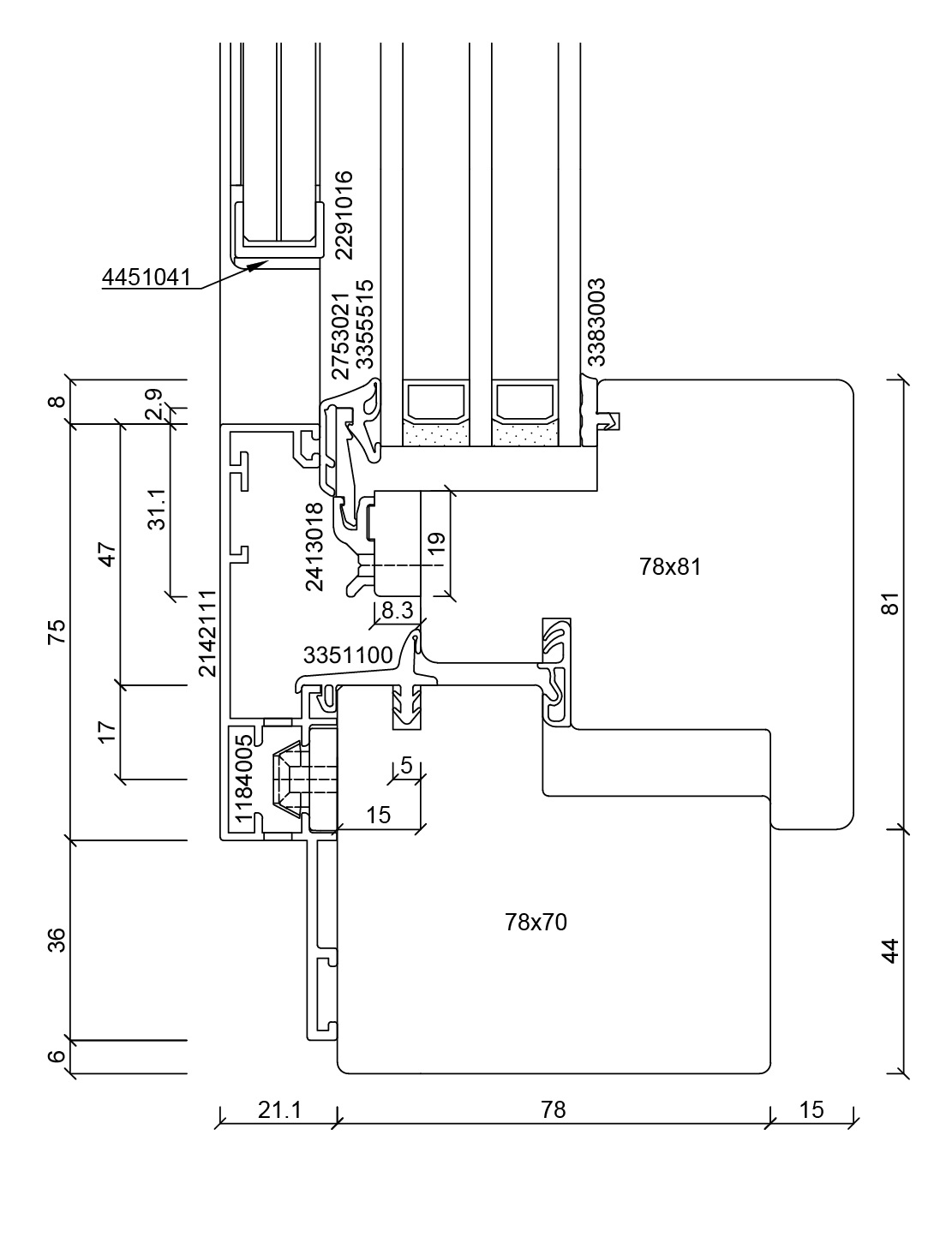

batimet TA35 INRA

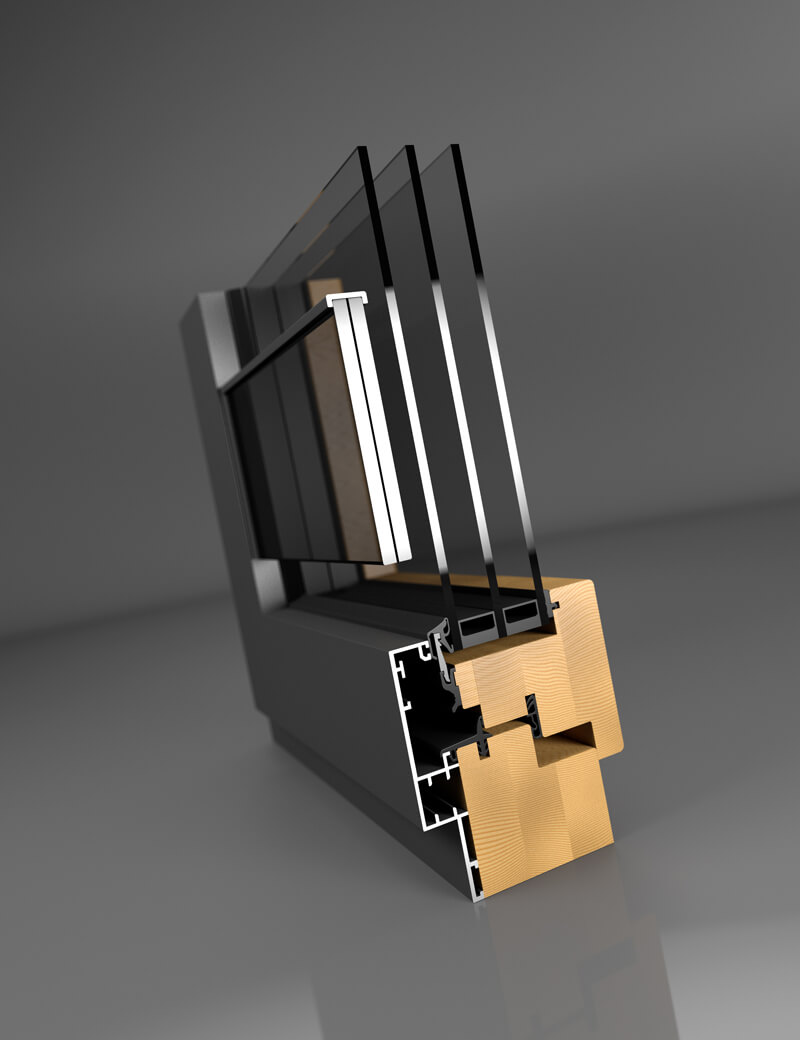

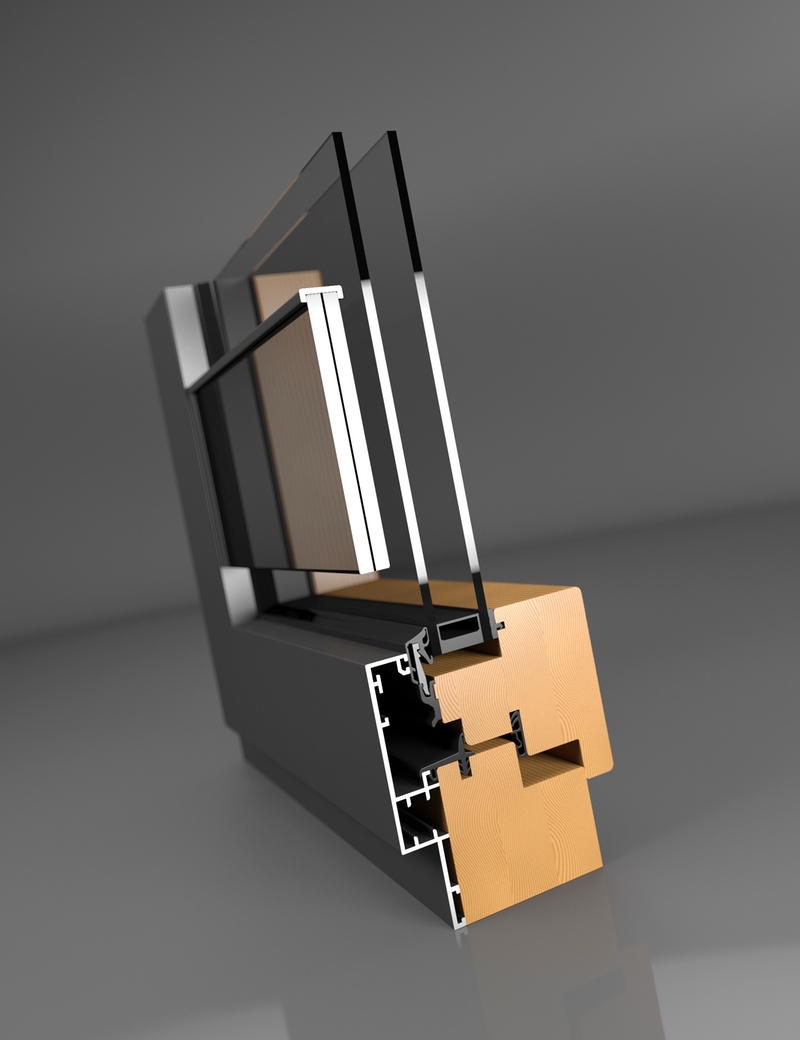

The frame profile conceals the sash profile insofar that there is an even elevation of the frame between fixed glazing and opening elements. Between glass and sash profile there is a rebate of 8 mm depth. The construction is defined as an integral sash or as „Blockflügel“. The sash profile can be wider in the case of certain static requirements. Drainage of the rebate area is by means of concealed punch holes in the bottom profile crosspiece of the frame. Optionally, there can be visible drainage with a cover cap. Die Eckverbindungen der Aluminium-Rahmen werden in geschweißter Form ausgeführt. Integrierte Glasabsturzsicherung unsichtbar befestigt im Aluminium-Rahmen. Die Integration der Glasscheibe in den Alurahmen erfolgt durch eine Systemfräsung. Die Glasabsturzsicherung wird durch ein spezielles, vollverdecktes Halteprofilsystem befestigt. Die Ausführung erfolgt nach den Regelungen der DIN 18008-4 für absturzsichere Verglasungen. Die Glasscheibe ist in allen Breiten immer als VSG Scheibe aus 2 x ESG mit je 6 mm aufgebaut. Den oberen Abschluss bildet ein filigranes System-Kantenschutzprofil aus Aluminium. .
- Height of Sash to 3,000 mm
- Width of Sash to 1,600 mm
- Weight of Sash as Tilt/Turn to 200 kg
- Weight of Sash as Turn Only to 300 kg
The corner joints of the aluminium frame are welded without any visible joint line. Coating is carried out in conformity with the valid quality guidelines of the coating of building parts in aluminium of GSB-International GSB AL 631, or QUALICOAT regulations.
Top Uw-Values
Uw-Values ≥ 0.70 W/m²K
Types of Wood
Spruce, Pine, Fir, Larch, Oak, Hemlock, Douglas Fir
Surface
RAL, NCS, DB, anodised, metallic, highly weather resistant, sea water proof
Corner Joint
Welded, no visible joint lines, durable anti corrosion coarting
| DIN EN 12207 | Air Permeability: Class 4 |
| DIN EN 12208 | Driving Rain Resistance: Class E900 |
| DIN EN 12210 | Windload Resistance: Class C4 |
| DIN EN ISO 10077-2 | Uw ≥ 0.70 W/m²K |
| DIN EN ISO 717-1 | Noise Insulation: Rwp = 46 dB |
| DIN EN 1627 | Burglar Resistance: RC1N, RC2N, RC2 |
| DIN 18008-4 | TRAV Safety Barrier: Category A, B, C |
